< BAG CLOSER MACHINES >


MODEL - D

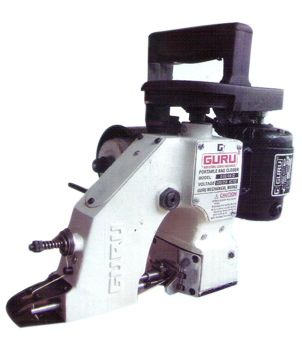

Model - D
PORTABLE BAG CLOSER MACHINE:
1 Needle, 1 Thread, Single Chain stitch sewing machine for closing all kinds of filled bags with agricultural product fertilizer, Flour, Chemicals, Rice, Seeds, Animal Feeds, Cement etc.

Sewing speed : 5-8 secs. per bag.
Stitch Length : 7.2 mm (Fixed)
Needle : DBx257#25
Motor : 1/10 HPx8000 RPM. 220V.50C/S, AC/DC

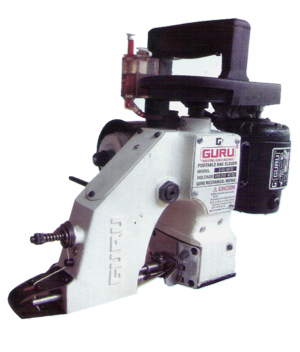

Model -DL
PORTABLE BAG CLOSER MACHINE :
 1 Needle, 1 Thread single chain stitch sewing machine for closing filled bags of Jute, Cotton, PP/PE, Multiwall Paper etc. Equipped with self lubricating push type oil pump.

Sewing speed 5-8 secs. Per bag
Stitch length 7.2 mm (Fixed)
Needle DBx257 # 25
Motor 1/10HPx8000 RPM, 220V,50C/S.AC/DC
Driven by V-belt

MODEL - DL



MODEL - DL-DN

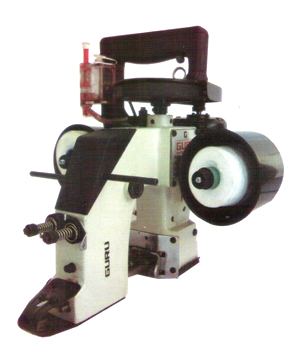

Model :DL-DN
 PORTABLE  CLOSER MACHINE: (DOUBLE NEEDLE).
One Machine does the work of Two machines and Two seams in One Operation. Double Needle, 2 Thread single chain stitch sewing machine for closing filled
bags of Jute/HDPE/Woven Sacks/Multiwall Paper Bags etc. Used in Seed, Rice, Chemicals, Food Grains, Industries.

Sewing Capacity 4-6 secs. Per bag
Stitch length 7.5 mm (Fixed)
Needle DBx257 # 25
Motor 1/10HPx8000 RPM, 220-230V.AC/DC,50C/S
Seam Single thread chain stitch.

Model - GBC2:
BAG CLOSING HEAD:
1 Needle, 2 Thread, Double Lock chain stitch sewing machine for closing filled bags of jute, cotton, paper, plastic or woven polypropylene tapes. Can be used
as a suspended system with top lock balancer or by fixing on the beltconveyor system.

Stitch Length : Adjustable 6.5 mm to 11 mm.
Speed : App. 1150 stitches/min.
Presser Foot Lift : up to 16 mm. max.
Needle : DR x 2# 24, 25, 26, 28


MODEL - GBC2



MODEL -SCS-GBC2
MODEL SCS-GBC2
HEAVY DUTY BAG CLOSING SYSTEM WITH SLAT/BELT CONVEYOR SYSTEM FOR FILLED BAGS:
 Perfect, rigid & versatile bag closing system For continuous operation in large and Medium scale industries

Conveyor Length 3 mtrs. Standard (Can be supplied as per specific requirements)
Sewing Head Model No. GBC2 (Double Thread), Heavy Duty.
Seam Type Double Lock Chain Stitch.
Capacity Upto 900 Bags Per Hour
Sewing Head Height Adjustable ; to suit different sizes of bags.
Operated by Double action foot switch
Attachment Taping Attachment can be provided at extra cost.

MODEL CCS-D1
 CARRIAGE CONVEYOR SYSTEM:
 Suitable for, "where Economy is more important than Production." This model is perfect for continuous process and performance is like a Heavy Duty Machine.

Capacity Up to 150 bags per hour
Stitch  Available in Single thread      Or      Double thread chain Stitch versions.


MODEL CCS-D1
